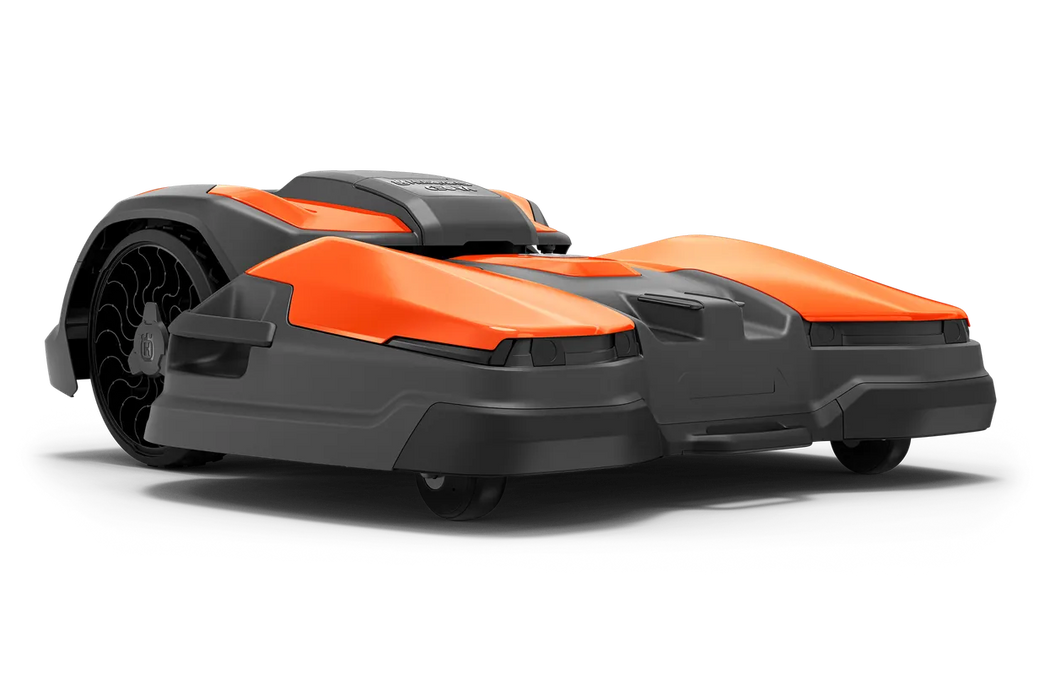

Husqvarna CEORA® 546 EPOS® / RZ 43M / CS4

A peak-performance robotic model for large-area mowing, featuring Husqvarna EPOS® technology. Systematic, high-precision cutting tailored for optimized flexibility within virtual boundaries. Handles very large areas such as multiple football fields, golf courses or large hotel, company or municipal facilities. Delivering a professional result on the turf, operating quietly and with zero emissions while in use.
This CEORA® configuration is equipped with the drive unit, CEORA® 546 EPOS®, the tailored-made cutting deck, RZ 43M, and the charging station, CS4.
EPOS® RS5 Reference station sold separately.



Capacity - Compare specifications across different product articles

Capacity	CEORA™ 546 EPOS™ / RZ 43M / CS4 Art no: 970 75 01‑01
Area capacity	50,000 m²
Boundary type	Virtual wire
Maximum slope performance at boundary	15 %
Maximum slope performance inside installation	20 %
Follow guide	Virtual transport path
Charging system	Automatic

Overall dimensions - Compare specifications across different product articles

Overall dimensions	CEORA™ 546 EPOS™ / RZ 43M / CS4 Art no: 970 75 01‑01
Weight (complete product w/o side packed articles)	74 kg
Product size length	124 cm
Product size width	108 cm
Product size height	44 cm

Product data - Compare specifications across different product articles

Product data	CEORA™ 546 EPOS™ / RZ 43M / CS4 Art no: 970 75 01‑01
Colour	Orange
Sound level perceived	72 dB(A)
Protection Index (IP Code)	IPX5
Battery Chemistry	Li-Ion
Battery capacity	49 Ah
Charging current	12
Typical mow time on one charge	250 min
Typical charging time	150 min
Mean energy consumption per month at maximum use	130 kWh
Area capacity - Standard 48	50,000 m²
Area capacity - Sports 24	25,000 m²
Area capacity per hour without charging	1,800 m²

Cutting System - Compare specifications across different product articles

Cutting System	CEORA™ 546 EPOS™ / RZ 43M / CS4 Art no: 970 75 01‑01
Cutting system	3 discs with 5 pivoting blades
Cutting height max	70 mm
Cutting height min	20 mm
Cutting width	68 cm
Cutting height adjustment	Electric
Skid plate	Yes

Control - Compare specifications across different product articles

Control	CEORA™ 546 EPOS™ / RZ 43M / CS4 Art no: 970 75 01‑01
User Interface	Professional User Interface/App
Display	None
Connectivity	Cellular, Bluetooth®
App controlled	Husqvarna Fleet Services
Firmware Update	FOTA

Safety - Compare specifications across different product articles

Safety	CEORA™ 546 EPOS™ / RZ 43M / CS4 Art no: 970 75 01‑01
GPS Theft tracking	Yes
GeoFence	Yes
PIN code	Yes
Alarm	Yes
Lift sensor	Yes
Tilt sensor	Yes
Object detection	Ultrasonic
